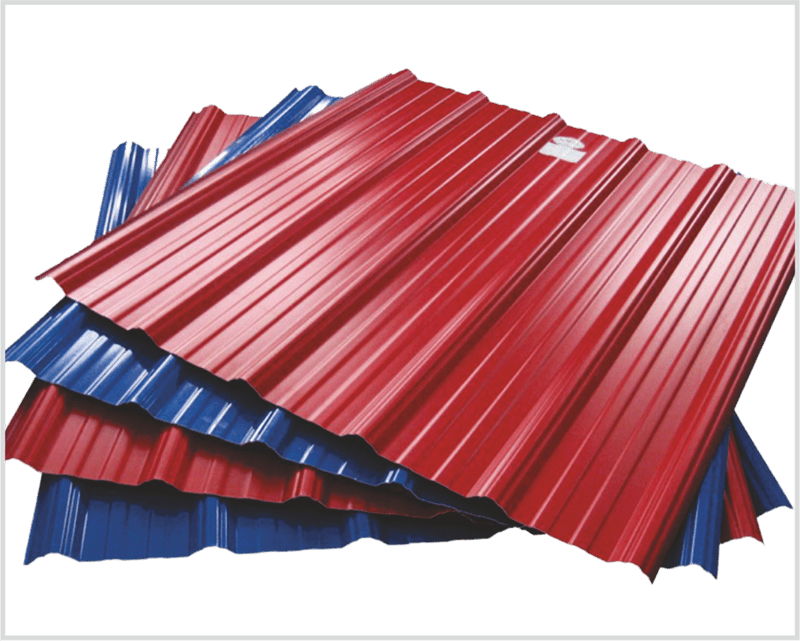

Colour Coated Profile Sheets
We have launched a world-class range of Pre-Painted Steel Roofing Sheet. Pre-Painted Steel provide excellent resistance to corrosion and hence has become the most preferred materials for a wide range of construction uses, particularly roofing and wall cladding. pre-Painted Stee! Sheets makes a unique building material. These Pre-Painted Steel Sheets are durable, cost effective and easy to install and use. It is ready to use product that can be used into a number of structural and decorative building components
Pre-Painted Galvalume Steel Sheets (PPGL):
- Substrate Cold Rolled Steel, Yield Strength 300 - 500 Mpa, Tensile Strength 570 MPA,
- Zinc Aluminium Coating 70/150 gsm, Total Coated Thickness 0.35 - 0.80 mm.
Pre-Painted Glavanized Steel Sheets (PPGI):
- Substrate COLD ROLLED STEEL, Yield Strength 300-500 MPA, Tensile Strength 570 MPA,
- Zinc Coating 70-120 GSM, Total Coated Thickness 0.35 - 0.80 mm.
Structure of Pre Painted Steel Sheets:
- Guard Flim (Optional), Topocoat, Primer Passivating Layer, Zinc Coat, Base Metal.
Standard Accessories:
- Rigid Transparent Root, Glazing Sheets Available In Required Lengths,
- Matching Color Coated Sheets Profile Made Out Of translucent Sheets.
Application
- Industrial shed and warehouse roofing requiring durable, weatherproof sheets.
- Wall cladding for factories, godowns and commercial buildings.
- Residential and commercial roofing needing a ready-to-use, pre-painted finish.
- Structural and decorative building components in construction projects.
- Agricultural shed roofing requiring corrosion-resistant, cost-effective sheeting.
Our Specialization
- Pre-painted Galvalume (PPGL) and Galvanized (PPGI) steel sheet options available.
- Zinc-aluminium or zinc coating from 70 to 150 GSM for corrosion resistance.
- Total coated thickness from 0.35 mm to 0.80 mm across the sheet range.
- Yield strength of 300 to 500 MPa and tensile strength of 570 MPa.
- Standard accessories including transparent roof and glazing sheets available on request.
FAQ for Colour Coated Profile Sheets
What are Colour Coated Profile Sheets?
Colour Coated Profile Sheets are pre-painted steel roofing and cladding sheets offering excellent corrosion resistance and a ready-to-use finish.
What is the difference between PPGL and PPGI sheets?
PPGL sheets have a zinc-aluminium coated substrate, while PPGI sheets have a zinc coated substrate; both are pre-painted for roofing and cladding use.
What thickness range is available in Colour Coated Profile Sheets?
Colour Coated Profile Sheets are available with a total coated thickness from 0.35 mm to 0.80 mm.
What is the coating weight (GSM) of these sheets?
The zinc or zinc-aluminium coating ranges from 70 to 150 GSM depending on whether it is a PPGL or PPGI sheet.
Can Colour Coated Profile Sheets be used for wall cladding as well as roofing?
Yes, these sheets are suitable for both roofing and wall cladding applications thanks to their durable, weather resistant finish.
